I tried to give this post an eye-catching title like "The Power of Indentation!" But my fingers wouldn't have it. Blame the fingers.

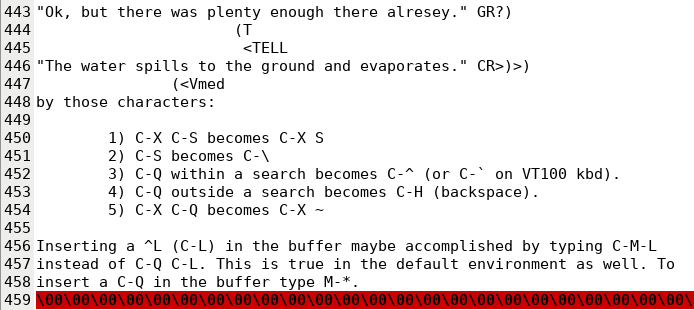

I don't know much about the text-editing tools used at Infocom. The Witness source directory includes a tantalizing mention of TECO, an editor used at MIT in the 1960s and 70s. Going back a couple of years, there's a map file in the 1978 MDL Zork repository which seems to about managing TECO keybindings.

TECO's editing macros later evolved into their own editor, naturally called "Emacs". Wikipedia notes:

By 1979, Emacs was the main editor used in MIT's AI lab and its Laboratory for Computer Science.

It seems certain that Infocom folks used Emacs at some point, but I don't have any evidence about when.

Whatever editor they used, we can ask: Did it auto-indent their ZIL code? The ZIL code we have is very consistently indented, so it seems like a good bet, but I don't know for sure. The only reference in the 1989 ZIL manual is:

Also note the spaces at the beginning of the TELLs in the DESCFCN. If your describers are of the indentation flavor, your DESCFCN must supply its own indentation.

"Describers" are explained as:

[...] a small package of programs which handle the descriptions for the player's environment: current room and visible objects.

...Which is interesting, not least for saying "programs" for what we (and ZIL itself!) call "routines". I think that "indentation flavor" is not about source code indentation, but rather the indented style of object listing:

Sitting on the kitchen table is:
  A brown sack
  The brown sack contains:
    A glass bottle
    The glass bottle contains:
      A quantity of water
    A clove of garlic

Some Infocom games used a more sentence-like listing format, particular if they were less container-heavy.

But I digress. Let's go back to the source code.

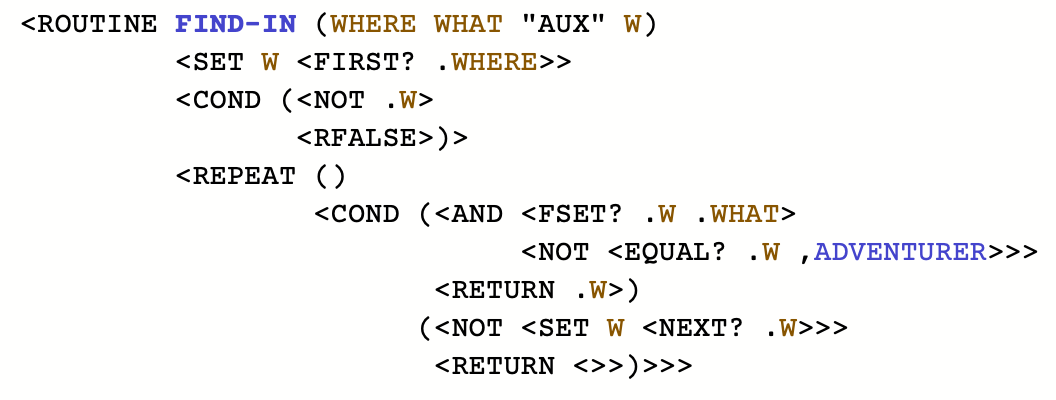

This is what the Infocom devs saw as they wrote their code:

(But probably in black and white. Or black and green. The syntax coloring is my addition.)

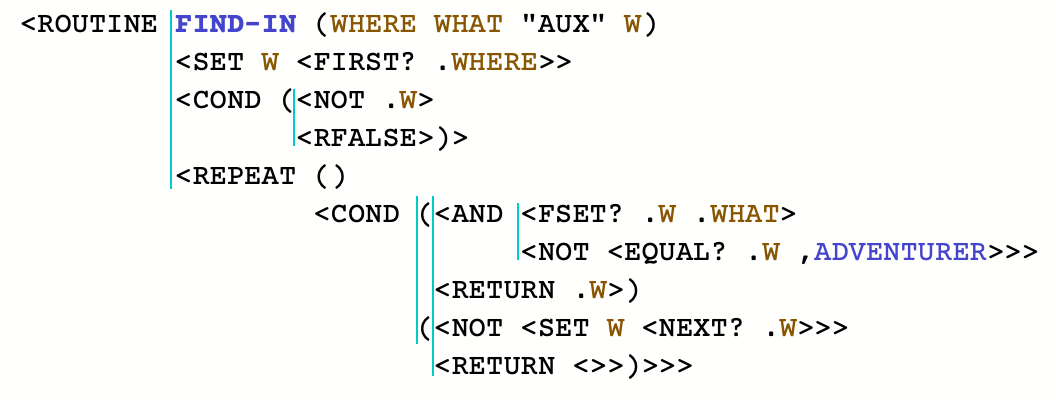

ZIL, like Lisp, is built around deeply-nested lists. Indentation is purely decorative, but it's a huge part of making ZIL/Lisp code readable. You can see that function above is indented to indicate nesting and what lines up with what:

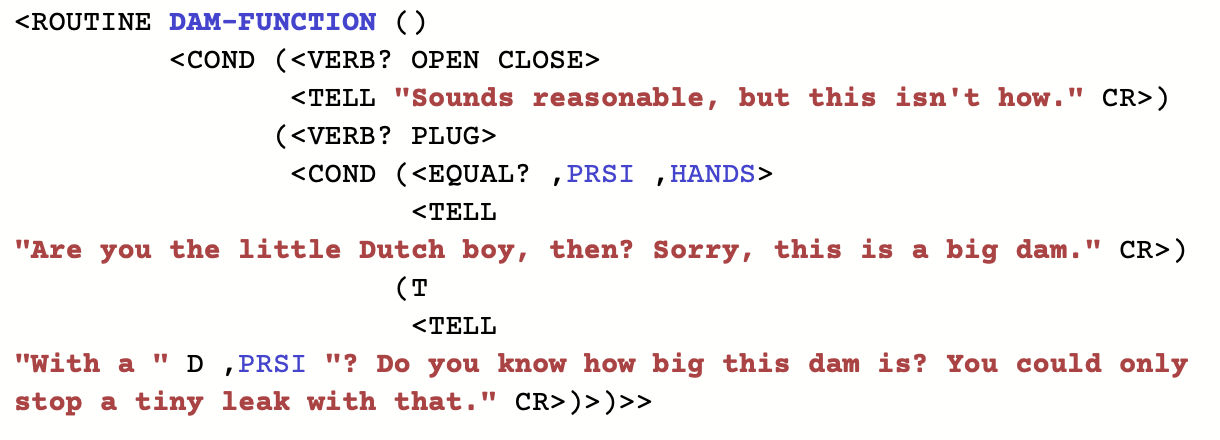

As I said, this is very consistent through all the ZIL code I've looked at. The only exceptions are long spans of text, which are left-justified for readability:

This indentation style seems to be designed specifically for ZIL game code. The ZIL compiler (which is MDL code, same idea) has similar code indentation; but multiline text spans are handled quite differently. So my guess is that someone built an indentation routine (or "program"!) specifically for Infocom game source.

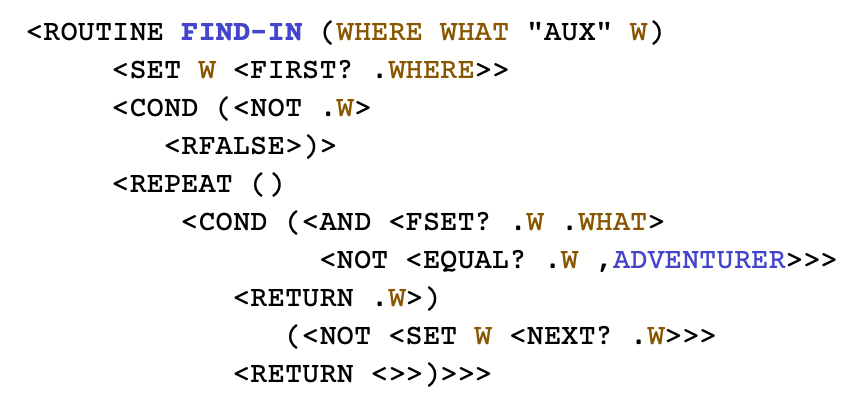

That's all great. Unfortunately, when I launched the Visible Zorker, it rather mangled the indentation.

That's entirely my fault. The original source files were indented with tab characters, and assumed 8-column tab stops. A very classic format, to be sure. But I'm used to 2-col or 4-col tab stops. When I wrote my ZIL-display code, I told it to transform tabs into four-space sequences.

When I made that decision, my only thought was, "It'll take up less space that way." The Visible Zorker app is divided into two or three text columns. They can be awfully narrow. Anything that reduced horizontal whitespace seemed like a good idea. But as you see, the vertical alignment went completely flop-bott.

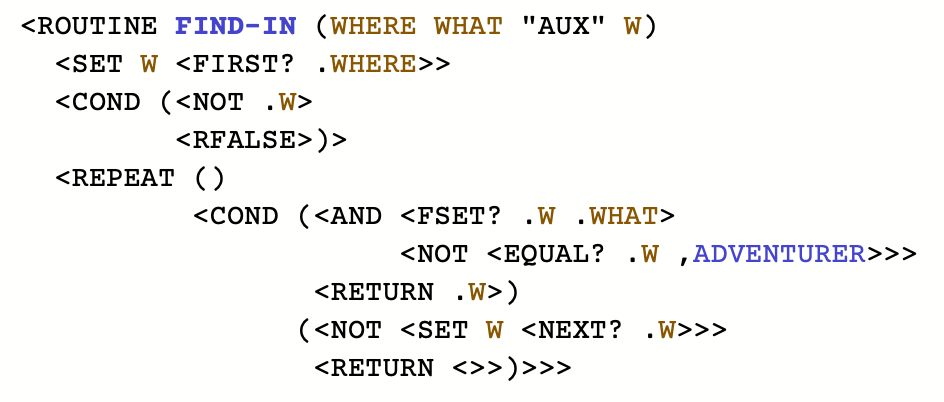

Someone pointed this out on the forum last week (thanks squam!) I cranked on some reindentation logic, and eventually settled on this:

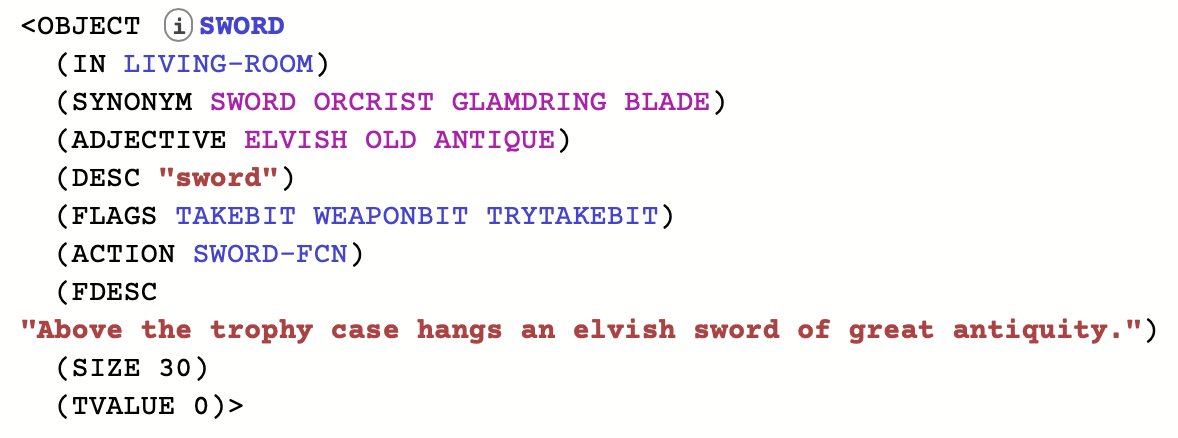

It's roughly the same as Infocom's style, except that the first level of indentation is always two columns. (Rather than trying to line up with the routine name.) This saves some space while keeping everything else aligned. It's particularly good for object definitions:

For large functions it can be wider than my previous (four-space) code. But I think the improved clarity is worth it.

All the Visible Zorker games have now been updated with the new format. Let me know if you see any problems.

(This article is cross-posted to my Patreon.)

Addendum:

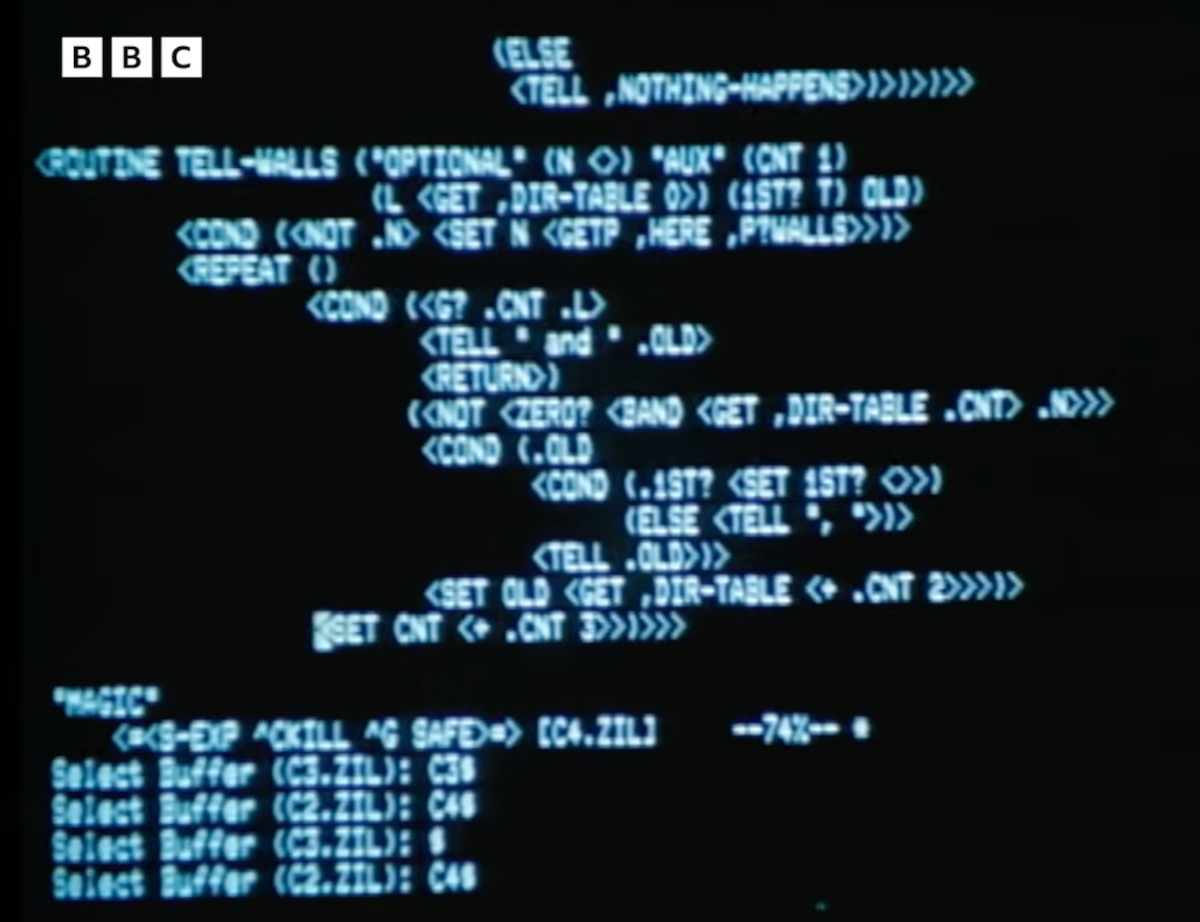

Hey, look -- evidence of editing software revealed! See video and comments below.

(The video is from 1985 and shows the development of Spellbreaker. So a bit later than I've got to in my Visible Zorker timeline.)
